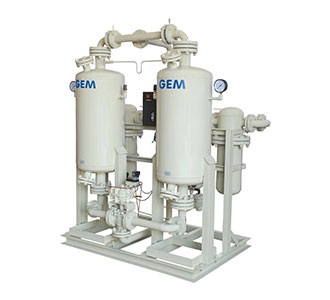

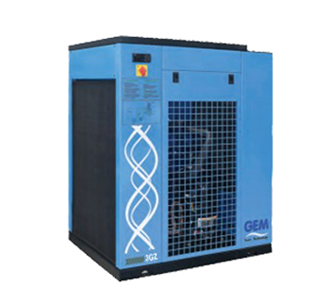

Compressed Air Dryer
Cooling Tower

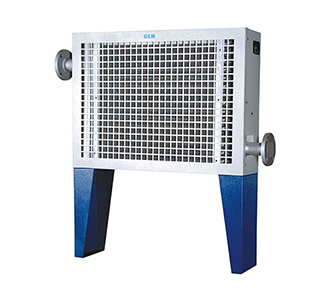

Compressed Air Treatment Accessories

GCT Selection chart – Tower Loading Factor(TLF)

S.No	Temp.Difference (ΔT)	Approach in ° C
S.No	Temp.Difference (ΔT)	4 ° C	5 ° C	6 ° C	7 ° C	8 ° C
1	4 ° C	13	14	15	16	17
2	6 ° C	12	13	14	15	16
3	8 ° C	11	12	13	14	15
4	10 ° C	10	11	12	13	14
5	12 ° C	9	10	11	12	13
6	14 ° C	8	9	10	11	12
7	16 ° C	7	8	9	10	11

Example

- Flow rate – 1200 lpm

- Water inlet temperature – 40°C

- Water outlet temperature – 32°C

- Wet bulb temperature – 28oC

- Tower Loading Factor (TLF) – 11 (as per chart)

- TR = Flow rate / Tower loading factor

= 1200 / 11
= 109.09 TR

Nearest (next highest) Model available is GCT125

The GEM Cooling Tower Design of water circuiting provides flexibility in selection and unequaled performance optimization. All inlet and outlet connections are provided on the same end thus reducing expensive piping and installation costs.

Rigid Construction:

A die formed galvanized steel frame provides stacking and shipping support and protection against tube damage during expansion and installation.

Venting, Draining and Expansion Tank:

Each water duty coil is provided with a convenient vent connection at the highest point and a drain connection at the lowest point apart from a small expansion tank.

Pressure Testing:

Each coil is pressure tested after manufacture, by air under water at 300 psi for water application.

Computerized Selection:

Speeds up and simplify the selection of right coil for your specific requirement.

Sizing Conversion Factors

Operating Conditions
	Ideal	Maximum
Working Pressure	4 bar to 10 bar	12 bar
Inlet Temperature	40°C	50°C
Atmospheric Dew Point	-40°C	-60°C
Cycle Time	4 minutes	4 minutes
Electrical	220V / 50 Hz / Single Phase	220V / 50 Hz / Single Phase

InletTemperature : (C1)

Inlet Temp ^oC	30	35	40	45	50	55	60
Conversion factor	1.2	1.15	1.05	1.0	0.85	0.8	0.7

AmbientTemperature : (C2)

Ambient Temp ^oC	25	30	35	40	45	50
Conversion factor	1.2	1.14	1.1	1.0	0.9	0.8

Inlet Pressure : (C3)

Inlet Pressure	bar (g)	4	5	6	7	8	9	10.5	11	12.5	13	14	15	16
Inlet Pressure	psi (g)	58	73	87	100	116	131	150	160	180	189	200	218	232
Correction Factor		0.75	0.85	0.95	1.00	1.06	1.11	1.15	1.18	1.20	1.22	1.23	1.25	1.28

Pressure Dew Point : (C4)

Dew Point (C4)
Dewpoint in C	3	7	10
Correction Factor	.0	1.15	1.3

Sizing Conversion Factors

Dryer Nominal Capacity =	Compressor Actual Capacity
	C1 x C2 x C3 x C4

Sizing Conversion Factors

Operating Conditions
	Ideal	Maximum
Working Pressure	4 bar to 10 bar	12 bar
Inlet Temperature	40°C	50°C
Atmospheric Dew Point	-40°C	-60°C
Cycle Time	4 minutes	4 minutes
Electrical	220V / 50 Hz / Single Phase	220V / 50 Hz / Single Phase

InletTemperature : (C1)

Inlet Temp ^oC	30	35	40	45	50	55	60
Conversion factor	1.2	1.15	1.05	1.0	0.85	0.8	0.7

AmbientTemperature : (C2)

Ambient Temp ^oC	25	30	35	40	45	50
Conversion factor	1.2	1.14	1.1	1.0	0.9	0.8

Inlet Pressure : (C3)

Inlet Pressure	bar (g)	4	5	6	7	8	9	10.5	11	12.5	13	14	15	16
Inlet Pressure	psi (g)	58	73	87	100	116	131	150	160	180	189	200	218	232
Correction Factor		0.75	0.85	0.95	1.00	1.06	1.11	1.15	1.18	1.20	1.22	1.23	1.25	1.28

Pressure Dew Point : (C4)

Dew Point (C4)
Dewpoint in C	3	7	10
Correction Factor	.0	1.15	1.3

Sizing Conversion Factors

Dryer Nominal Capacity =	Compressor Actual Capacity
	C1 x C2 x C3 x C4

Sizing Conversion Factors

Operating Conditions
	Ideal	Maximum
Working Pressure	4 bar to 10 bar	12 bar
Inlet Temperature	40°C	50°C
Atmospheric Dew Point	-40°C	-60°C
Cycle Time	4 minutes	4 minutes
Electrical	220V / 50 Hz / Single Phase	220V / 50 Hz / Single Phase

InletTemperature : (C1)

Inlet Temp ^oC	30	35	40	45	50	55	60
Conversion factor	1.2	1.15	1.05	1.0	0.85	0.8	0.7

AmbientTemperature : (C2)

Ambient Temp ^oC	25	30	35	40	45	50
Conversion factor	1.2	1.14	1.1	1.0	0.9	0.8

Inlet Pressure : (C3)

Inlet Pressure	bar (g)	4	5	6	7	8	9	10.5	11	12.5	13	14	15	16
Inlet Pressure	psi (g)	58	73	87	100	116	131	150	160	180	189	200	218	232
Correction Factor		0.75	0.85	0.95	1.00	1.06	1.11	1.15	1.18	1.20	1.22	1.23	1.25	1.28

Pressure Dew Point : (C4)

Dew Point (C4)
Dewpoint in C	3	7	10
Correction Factor	.0	1.15	1.3

Sizing Conversion Factors

Dryer Nominal Capacity =	Compressor Actual Capacity
	C1 x C2 x C3 x C4

Sizing Conversion Factors

Operating Conditions
	Ideal	Maximum
Working Pressure	4 bar to 10 bar	12 bar
Inlet Temperature	40°C	50°C
Atmospheric Dew Point	-40°C	-60°C
Cycle Time	4 minutes	4 minutes
Electrical	220V / 50 Hz / Single Phase	220V / 50 Hz / Single Phase

InletTemperature : (C1)

Inlet Temp ^oC	30	35	40	45	50	55	60
Conversion factor	1.2	1.15	1.05	1.0	0.85	0.8	0.7

AmbientTemperature : (C2)

Ambient Temp ^oC	25	30	35	40	45	50
Conversion factor	1.2	1.14	1.1	1.0	0.9	0.8

Inlet Pressure : (C3)

Inlet Pressure	bar (g)	4	5	6	7	8	9	10.5	11	12.5	13	14	15	16
Inlet Pressure	psi (g)	58	73	87	100	116	131	150	160	180	189	200	218	232
Correction Factor		0.75	0.85	0.95	1.00	1.06	1.11	1.15	1.18	1.20	1.22	1.23	1.25	1.28

Pressure Dew Point : (C4)

Dew Point (C4)
Dewpoint in C	3	7	10
Correction Factor	.0	1.15	1.3

Sizing Conversion Factors

Dryer Nominal Capacity =	Compressor Actual Capacity
	C1 x C2 x C3 x C4

Sizing Conversion Factors

Operating Conditions
	Ideal	Maximum
Working Pressure	4 bar to 10 bar	12 bar
Inlet Temperature	40°C	50°C
Atmospheric Dew Point	-40°C	-60°C
Cycle Time	4 minutes	4 minutes
Electrical	220V / 50 Hz / Single Phase	220V / 50 Hz / Single Phase

InletTemperature : (C1)

Inlet Temp ^oC	30	35	40	45	50	55	60
Conversion factor	1.2	1.15	1.05	1.0	0.85	0.8	0.7

AmbientTemperature : (C2)

Ambient Temp ^oC	25	30	35	40	45	50
Conversion factor	1.2	1.14	1.1	1.0	0.9	0.8

Inlet Pressure : (C3)

Inlet Pressure	bar (g)	4	5	6	7	8	9	10.5	11	12.5	13	14	15	16
Inlet Pressure	psi (g)	58	73	87	100	116	131	150	160	180	189	200	218	232
Correction Factor		0.75	0.85	0.95	1.00	1.06	1.11	1.15	1.18	1.20	1.22	1.23	1.25	1.28

Pressure Dew Point : (C4)

Dew Point (C4)
Dewpoint in C	3	7	10
Correction Factor	.0	1.15	1.3

Sizing Conversion Factors

Dryer Nominal Capacity =	Compressor Actual Capacity
	C1 x C2 x C3 x C4

Sizing Conversion Factors

Operating Conditions
	Ideal	Maximum
Working Pressure	4 bar to 10 bar	12 bar
Inlet Temperature	40°C	50°C
Atmospheric Dew Point	-40°C	-60°C
Cycle Time	4 minutes	4 minutes
Electrical	220V / 50 Hz / Single Phase	220V / 50 Hz / Single Phase

InletTemperature : (C1)

Inlet Temp ^oC	30	35	40	45	50	55	60
Conversion factor	1.2	1.15	1.05	1.0	0.85	0.8	0.7

AmbientTemperature : (C2)

Ambient Temp ^oC	25	30	35	40	45	50
Conversion factor	1.2	1.14	1.1	1.0	0.9	0.8

Inlet Pressure : (C3)

Inlet Pressure	bar (g)	4	5	6	7	8	9	10.5	11	12.5	13	14	15	16
Inlet Pressure	psi (g)	58	73	87	100	116	131	150	160	180	189	200	218	232
Correction Factor		0.75	0.85	0.95	1.00	1.06	1.11	1.15	1.18	1.20	1.22	1.23	1.25	1.28

Pressure Dew Point : (C4)

Dew Point (C4)
Dewpoint in C	3	7	10
Correction Factor	.0	1.15	1.3

Sizing Conversion Factors

Dryer Nominal Capacity =	Compressor Actual Capacity
	C1 x C2 x C3 x C4

Sizing Conversion Factors

Operating Conditions
	Ideal	Maximum
Working Pressure	4 bar to 10 bar	12 bar
Inlet Temperature	40°C	50°C
Atmospheric Dew Point	-40°C	-60°C
Cycle Time	4 minutes	4 minutes
Electrical	220V / 50 Hz / Single Phase	220V / 50 Hz / Single Phase

InletTemperature : (C1)

Inlet Temp ^oC	30	35	40	45	50	55	60
Conversion factor	1.2	1.15	1.05	1.0	0.85	0.8	0.7

AmbientTemperature : (C2)

Ambient Temp ^oC	25	30	35	40	45	50
Conversion factor	1.2	1.14	1.1	1.0	0.9	0.8

Inlet Pressure : (C3)

Inlet Pressure	bar (g)	4	5	6	7	8	9	10.5	11	12.5	13	14	15	16
Inlet Pressure	psi (g)	58	73	87	100	116	131	150	160	180	189	200	218	232
Correction Factor		0.75	0.85	0.95	1.00	1.06	1.11	1.15	1.18	1.20	1.22	1.23	1.25	1.28

Pressure Dew Point : (C4)

Dew Point (C4)
Dewpoint in C	3	7	10
Correction Factor	.0	1.15	1.3

Sizing Conversion Factors

Dryer Nominal Capacity =	Compressor Actual Capacity
	C1 x C2 x C3 x C4

Sizing Conversion Factors

Operating Conditions
	Ideal	Maximum
Working Pressure	4 bar to 10 bar	12 bar
Inlet Temperature	40°C	50°C
Atmospheric Dew Point	-40°C	-60°C
Cycle Time	4 minutes	4 minutes
Electrical	220V / 50 Hz / Single Phase	220V / 50 Hz / Single Phase

InletTemperature : (C1)

Inlet Temp ^oC	30	35	40	45	50	55	60
Conversion factor	1.2	1.15	1.05	1.0	0.85	0.8	0.7

AmbientTemperature : (C2)

Ambient Temp ^oC	25	30	35	40	45	50
Conversion factor	1.2	1.14	1.1	1.0	0.9	0.8

Inlet Pressure : (C3)

Inlet Pressure	bar (g)	4	5	6	7	8	9	10.5	11	12.5	13	14	15	16
Inlet Pressure	psi (g)	58	73	87	100	116	131	150	160	180	189	200	218	232
Correction Factor		0.75	0.85	0.95	1.00	1.06	1.11	1.15	1.18	1.20	1.22	1.23	1.25	1.28

Pressure Dew Point : (C4)

Dew Point (C4)
Dewpoint in C	3	7	10
Correction Factor	.0	1.15	1.3

Sizing Conversion Factors

Dryer Nominal Capacity =	Compressor Actual Capacity
	C1 x C2 x C3 x C4

Sizing Conversion Factors

Operating Conditions
	Ideal	Maximum
Working Pressure	4 bar to 10 bar	12 bar
Inlet Temperature	40°C	50°C
Atmospheric Dew Point	-40°C	-60°C
Cycle Time	4 minutes	4 minutes
Electrical	220V / 50 Hz / Single Phase	220V / 50 Hz / Single Phase

InletTemperature : (C1)

Inlet Temp ^oC	30	35	40	45	50	55	60
Conversion factor	1.2	1.15	1.05	1.0	0.85	0.8	0.7

AmbientTemperature : (C2)

Ambient Temp ^oC	25	30	35	40	45	50
Conversion factor	1.2	1.14	1.1	1.0	0.9	0.8

Inlet Pressure : (C3)

Inlet Pressure	bar (g)	4	5	6	7	8	9	10.5	11	12.5	13	14	15	16
Inlet Pressure	psi (g)	58	73	87	100	116	131	150	160	180	189	200	218	232
Correction Factor		0.75	0.85	0.95	1.00	1.06	1.11	1.15	1.18	1.20	1.22	1.23	1.25	1.28

Pressure Dew Point : (C4)

Dew Point (C4)
Dewpoint in C	3	7	10
Correction Factor	.0	1.15	1.3

Sizing Conversion Factors

Dryer Nominal Capacity =	Compressor Actual Capacity
	C1 x C2 x C3 x C4

Sizing Conversion Factors

Operating Conditions
	Ideal	Maximum
Working Pressure	4 bar to 10 bar	12 bar
Inlet Temperature	40°C	50°C
Atmospheric Dew Point	-40°C	-60°C
Cycle Time	4 minutes	4 minutes
Electrical	220V / 50 Hz / Single Phase	220V / 50 Hz / Single Phase

InletTemperature : (C1)

Inlet Temp ^oC	30	35	40	45	50	55	60
Conversion factor	1.2	1.15	1.05	1.0	0.85	0.8	0.7

AmbientTemperature : (C2)

Ambient Temp ^oC	25	30	35	40	45	50
Conversion factor	1.2	1.14	1.1	1.0	0.9	0.8

Inlet Pressure : (C3)

Inlet Pressure	bar (g)	4	5	6	7	8	9	10.5	11	12.5	13	14	15	16
Inlet Pressure	psi (g)	58	73	87	100	116	131	150	160	180	189	200	218	232
Correction Factor		0.75	0.85	0.95	1.00	1.06	1.11	1.15	1.18	1.20	1.22	1.23	1.25	1.28

Pressure Dew Point : (C4)

Dew Point (C4)
Dewpoint in C	3	7	10
Correction Factor	.0	1.15	1.3

Sizing Conversion Factors

Dryer Nominal Capacity =	Compressor Actual Capacity
	C1 x C2 x C3 x C4

Technical Specification

Model	Pipe Size	Flow Rates		Dimension				Weight
Model	Pipe Size	cfm	m³/h	A	B	C	D	Kg	Lbs
VWS-010	G 1/2"	100	170	94	42	204	130	1.75	3.85
VWS-012	G 3/4"	125	212	94	37	206	130	1.75	3.85
VWS-015	G 1"	150	255	94	37	212	130	1.75	3.85
VWS-025	G 1 1/2"	350	580	120	44	372	220	4.5	9.9
VWS-040	G 2"	600	1000	173	63	468	340	7.5	16.5
VWS-090	G 2 1/2"	1000	1700	173	60	471	340	9.5	20.9

Line Pressure	bar g	1	3	5	7	9	11	13	15	16
Line Pressure	psi g	15	44	73	100	131	160	189	218	232
Correction factor		0.5	0.71	0.87	1.0	1.12	1.22	1.32	1.41	1.56

* Product Design and specifications are subject to change due to constant upgradation.

Technical Specification

Filter Model	Capacity		Connection BSP	Dimension				Weight
Filter Model	cfm	m³/h	Connection BSP	A	B	C	D	Kg
GFZ 005 (Grade)	35	60	3/8"	187	88	21	60	0.77
GFZ 007 (Grade)	50	80	1/2"	187	88	21	60	0.77
GFZ 010 (Grade)	75	120	3/4"	256	88	21	80	0.88
GFZ 018 (Grade)	125	210	1"	362	125	33	100	2.20
GFZ 030 (Grade)	200	335	1"	362	125	33	120	2.60
GFZ 047 (Grade)	310	510	1 1/2"	452	125	33	140	2.90
GZF 070 (Grade)	450	750	1 1/2"	643	125	33	160	3.70
GZF 094 (Grade)	600	1000	2"	695	163	48	520	7.40
GZF 150 (Grade)	900	1500	2"	935	163	48	770	10
GZF 175 (Grade)	1200	2040	3"	1170	248	74	780	20
GZF 240 (Grade)	1700	2760	3"	1170	248	74	780	25

GRADES
Particle Removal	3 Micron	0.1 Micron	0.01 Micron	0.01 Micron
Oil Removal	-	0.1 mg/m³	0.01 mg/m³	0.005 mg/m³
Nominial Initial Pressure Drop	0.03 bar g	0.05 bar g	0.06 bar g	0.12 bar g
Maximum Operating Temprature	80°C	80°C	80°C	80°C
Maximum Operating Pressure	16 bar g	16 bar g	16 bar g	16 bar g
Recommended Pressure Differential for Element Change	0.7 bar g	0.7 bar g	0.7 bar g	0.7 bar g
Media	Poly Propylene	Boro Silicate	Boro Silicate	Boro Silicate with impregenated Active Carbon
Efficiency	-	99%	99.99%	99.9999%

Line Pressure	bar g	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Line Pressure	psi g	14	29	43	57	71	86	100	114	129	143	157	171	186	200	214	229
Correction factor		0.3	0.4	0.5	0.6	0.75	0.9	1	1.1	1.2	1.3	1.5	1.6	1.7	1.8	1.9	2

* Product Design and specifications are subject to change due to constant upgradation.

Technical Specifications

Model	Capacity m³	Diameter (inner) mm	Overall Height mm	Working Pressure bar	Shell/Dish Thickness mm	In/Out Connection	Design Presure bar	Hydro Test Pressure bar	Hand Hole / Man Hole
VAR025	0.25	490	1610	7	5/5	3/4" BSP	8	12	Hand Hole
				10.5	10.5		12	18
				12.5	12.5		14	21
VAR50	0.5	610	2005	7	5/5	1" BSP	8	12	Hand Hole
				10.5	5/6		12	18
				12.5	6/8		14	21
VAR075	0.75	734	1900	7	5/6	1 1/2" BSP	8	12	Hand Hole
				10.5	5/6		12	18
				12.5	8/8		14	21
VAR100	1.0	734	2750	7	5/6	1 1/2" BSP	8	12	Hand Hole
				10.5	8/8		12	18
				12.5	10/10		14	21
VAR150	1.5	980	3165	7	5/6	2" BSP	8	12	Man Hole 475x425mm
				10.5	8/8		12	18
				12.5	10/10		14	21
VAR200	2.0	980	3165	7	5/6	2" BSP	8	12	Man Hole 475x425mm
				10.5	8/8		12	18
				12.5	10/10		14	21
VAR250	2.5	980	3820	7	5/6	2" NB FLG	8	12	Man Hole 475x425mm
				10.5	8/8		12	18
				12.5	10/10		14	21
VAR300	3.0	980	4485	7	5/6	4" NB FLG	8	12	Man Hole 475x425mm
				10.5	8/8		12	18
				12.5	10/10		14	21
VAR400	4.0	1289	3575	7	8/8	4" NB FLG	8	12	Man Hole 475x425mm
				10.5	10/10		12	18
				12.5	12/12		14	21
VAR500	5.0	1289	4340	7	8/8	4" NB FLG	8	12	Man Hole 475x425mm
				10.5	10/10		12	18
				12.5	12/12		14	21
VAR600	6.0	1289	5095	7	8/8	6" NB FLG	8	12	Man Hole 475x425mm
				10.5	10/10		12	18
				12.5	12/12		14	21
VAR800	8.0	1464	5300	7	8/10	8" NB FLG	8	12	Man Hole 475x425mm
				10.5	12/12		12	18
				12.5	12/14		14	21
VAR1000	10.0	1464	6510	7	8/10	8" NB FLG	8	12	Man Hole 475x425mm
				10.5	12/12		12	18
				12.5	12/14		14	21

* Product Design and specifications are subject to change due to constant upgradation.

Technical Specification

GZ - HD

Accessories

Stainer
Pilot Tubing
Connector Tubing

SPECIFICATIONS
Valve opening interval	0.5-35 min (adjustable)
Valve discharge	0.5-20 sec (adjustable)
Power consumption	10 W
Max. operating temp.	89º C
Max. operating press.	16 bar (g)
Orifice	6 mm
In/Out ports	1/2" BSP
Connector	DIN43650A
Environmental protect	IP65
Type	Pilot operated
Max. discharge at 7 bar	150 lit/hr
Weight	0.5 kg

FEATURES & APPLICATIONS
Features	Applications
Universal Voltage and Frequency 'Any where,Any country'	Dryers
UNO Piston	Receivers
Manual Test switch	Filters
	Vortex Seperators
	For compressors upto 2000 CFM

GZ - LD

Accessories

Stainer
Connector Tubing

SPECIFICATIONS
Valve opening interval	0.5-35 min (adjustable)
Valve discharge	0.5-20 sec (adjustable)
Power consumption	10 W
Max. operating temp.	90º C
Max. operating press.	16 bar (g)
Orifice	3 mm
In/Out ports	1/2" BSP
Connector	DIN43650A
Environmental protect	IP65
Type	Pilot operated
Max. discharge at 7 bar	60 lit/hr
Weight	0.5 kg

FEATURES & APPLICATIONS
Features	Applications
Universal Voltage and Frequency 'Any where, Any country'	Dryers
Viton Seals in valve for long life	Receivers
	Filters
	Vortex Seperators
	For compressors upto 100 CFM

GDV - HD

Accessories

Stainer
Pilot Tubing
Connector Tubing

SPECIFICATIONS
Valve opening interval	1 - 136 min
Valve discharge	4 sec (fixed)
Power consumption	9 W
Max. operating temp.	75º C
Max. operating press.	16 bar (g)
Orifice	12.5 mm
In/Out ports	1/2" BSP
Connector	DIN43650A with 2 core rated for 3A
Environmental protect	IP55
Type	Direct operated
Max. discharge at 7 bar	200 lit/hr
Weight	1 kg

FEATURES & APPLICATIONS
Features	Applications
Non Clogging'	Dryers
Larger Orifice	Receivers
	Filters
	For compressors upto 3000 CFM

GDV - LD

Accessories

Stainer
Connector Tubing

SPECIFICATIONS
Valve opening interval	1 - 136 min
Valve discharge	8 sec (fixed)
Power consumption	10 W
Max. operating temp.	75º C
Max. operating press.	16 bar (g)
Orifice	1.3 mm
In/Out ports	1/2" BSP
Connector	DIN43650A with 2 core rated for 3A
Environmental protect	IP55
Type	Direct operated
Max. discharge at 7 bar	29 lit/hr
Weight	0.75 kg

FEATURES & APPLICATIONS
Features	Applications
In built Strainer	Dryers
	Receivers
	After Coolers
	For compressors upto 60 CFM

GFV - 20

Accessories

Stainer
Pilot Tubing
Connector Tubing

SPECIFICATIONS
Valve opening interval
Valve discharge
Power consumption
Max. operating temp.	90º C
Max. operating press.	20 bar (g)
Orifice	3 mm
In/Out ports	1/2" BSP
Connector
Environmental protect
Type	Float operated
Max. discharge at 7 bar	300 lit/hr
Weight	0.9 kg

FEATURES & APPLICATIONS
Features	Applications
Zero Air Loss	Dryers
No Electricity...No Noise	Receivers
Robustic Design	Filters
Manual Discharge	After Coolers
Cleanable Orifice	Vortex Seperators
Float type	For compressors upto 3000 CFM

* Product Design and specifications are subject to change due to constant upgradation.

Technical Specifications

Model	Capacity		Working Pressure	Length	Shell Dia	Comp. Air	Cooling Water	Water Flow Rate
Model	CFM	m³/hr	bar	mm	ØB	In/Out	In/Out	LPM
WAV005	50	83	16	1140	2"NB	3/4" BSP	1/2" BSP	8
WAV010	100	170	16	1165	3"NB	1" BSP	1/2" BSP	14
WAV020	200	335	16	1365	4"NB	1 1/2" BSP	3/4" BSP	25
WAV025	250	420	16	1590	4"NB	2" NB Flg	1" BSP	32
WAV040	400	670	16	1630	6"NB	3" NB Flg	1 1/2" BSP	50
WAV050	500	835	16	1880	6"NB	3" NB Flg	1 1/2" BSP	64
WAV075	750	1250	16	1695	8"NB	3" NB Flg	2" BSP	100
WAV100	1000	1670	16	1995	8"NB	4" NB Flg	2" BSP	140
WAV125	1250	2100	16	2145	8"NB	4" NB Flg	2" BSP	170
WAV150	1500	2500	16	2245	8"NB	5" NB Flg	2" BSP	200

Air inlet temprature is 150ºC, Air outlet temprature is 40ºC

Model	Capacity		Working Pressure	Length	Shell Dia	Comp. Air	Cooling Water	Water Flow Rate
Model	CFM	m³/hr	bar	mm	ØB	In/Out	In/Out	LPM
WAH005	50	83	16	1375	2"NB	2" NB Flg	1/2" BSP	8
WAH010	100	170	16	1600	2"NB	2" NB Flg	1/2" BSP	15
WAH015	150	250	16	1400	3"NB	3" NB Flg	3/4" BSP	22
WAH020	200	335	16	1400	3"NB	3" NB Flg	3/4" BSP	30
WAH025	250	420	16	1600	3"NB	3" NB Flg	3/4" BSP	38
WAH030	300	500	16	1750	3"NB	3" NB Flg	3/4" BSP	45
WAH040	400	670	16	1950	4"NB	4" NB Flg	1" BSP	60
WAH050	500	835	16	1600	4"NB	4" NB Flg	1" BSP	75
WAH075	750	1250	16	1750	6"NB	6" NB Flg	1 1/2" BSP	115
WAH100	1000	1670	16	1550	6"NB	6" NB Flg	1 1/2" BSP	160
WAH125	1250	2100	16	1800	6"NB	6" NB Flg	1 1/2" BSP	200
WAH150	1500	2500	16	1550	8"NB	5" NB Flg	2" BSP	240

* Product Design and specifications are subject to change due to constant upgradation.

Technical Specifications

Model	Capacity		Working Pressure	Power Req.	Electrical Conn.		In/Out Conn.	Dimension mm			Weight
Model	CFM	m³/hr	bar	Kw	220V 1PH 50 HZ	415V 3PH 50Hz	BSP	A	B	C	Kg.
ACC003	35	58	16	0.036			1/2"	422	120	727	45
ACC005	50	83	16	0.11			3/4"	513	140	806	50
ACC010	100	170	16	0.24			1 1/2"	622	160	905	75
ACC015	150	255	16	0.24			1 1/2"	622	160	905	75
ACC020	200	340	16	0.24			2" NB FLG	900	230	1080	140
ACC030	300	510	16	0.24			2" NB FLG	900	230	1080	150
ACC040	400	680	16	0.55			2" NB FLG	920	920	1285	200
ACC060	600	1020	16	0.75			3" NB FLG	1000	1080	1055	220
ACC075	750	1275	16	1.5			3" NB FLG	1750	1524	1500	250
ACC100	1000	1700	16	1.5			4" NB FLG	1750	1524	1500	250

Air inlet temperature is 90ºC, Air outlet temperature is 45ºC

* Product Design and specifications are subject to change due to constant upgradation.

GCT Selection chart – Tower Loading Factor(TLF)

S.No	Temp.Difference (ΔT)	Approach in ° C
S.No	Temp.Difference (ΔT)	4 ° C	5 ° C	6 ° C	7 ° C	8 ° C
1	4 ° C	13	14	15	16	17
2	6 ° C	12	13	14	15	16
3	8 ° C	11	12	13	14	15
4	10 ° C	10	11	12	13	14
5	12 ° C	9	10	11	12	13
6	14 ° C	8	9	10	11	12
7	16 ° C	7	8	9	10	11

Example

- Flow rate – 1200 lpm

- Water inlet temperature – 40°C

- Water outlet temperature – 32°C

- Wet bulb temperature – 28oC

- Tower Loading Factor (TLF) – 11 (as per chart)

- TR = Flow rate / Tower loading factor

= 1200 / 11
= 109.09 TR

Nearest (next highest) Model available is GCT125

GCT Selection chart – Tower Loading Factor(TLF)

S.No	Temp.Difference (ΔT)	Approach in ° C
S.No	Temp.Difference (ΔT)	4 ° C	5 ° C	6 ° C	7 ° C	8 ° C
1	4 ° C	13	14	15	16	17
2	6 ° C	12	13	14	15	16
3	8 ° C	11	12	13	14	15
4	10 ° C	10	11	12	13	14
5	12 ° C	9	10	11	12	13
6	14 ° C	8	9	10	11	12
7	16 ° C	7	8	9	10	11

Example

- Flow rate – 1200 lpm

- Water inlet temperature – 40°C

- Water outlet temperature – 32°C

- Wet bulb temperature – 28oC

- Tower Loading Factor (TLF) – 11 (as per chart)

- TR = Flow rate / Tower loading factor

= 1200 / 11
= 109.09 TR

Nearest (next highest) Model available is GCT125

GCT Selection chart – Tower Loading Factor(TLF)

S.No	Temp.Difference (ΔT)	Approach in ° C
S.No	Temp.Difference (ΔT)	4 ° C	5 ° C	6 ° C	7 ° C	8 ° C
1	4 ° C	13	14	15	16	17
2	6 ° C	12	13	14	15	16
3	8 ° C	11	12	13	14	15
4	10 ° C	10	11	12	13	14
5	12 ° C	9	10	11	12	13
6	14 ° C	8	9	10	11	12
7	16 ° C	7	8	9	10	11

Example

- Flow rate – 1200 lpm

- Water inlet temperature – 40°C

- Water outlet temperature – 32°C

- Wet bulb temperature – 28oC

- Tower Loading Factor (TLF) – 11 (as per chart)

- TR = Flow rate / Tower loading factor

= 1200 / 11
= 109.09 TR

Nearest (next highest) Model available is GCT125

Contact Our Factory

SCT Selection chart

S.No	Temp.Difference (ΔT)	Approach in ° C
S.No	Temp.Difference (ΔT)	2 ° C	3 ° C	4 ° C	5 ° C	6 ° C	7 ° C	8 ° C
1	4 ° C	10	11	12	13	14	15	16
2	6 ° C	9	10	11	12	13	14	15
3	8 ° C	8	9	10	11	12	13	14
4	10 ° C	7	8	9	10	11	12	13
5	12 ° C	6	7	8	9	10	11	12

Example

- Flow rate – 1200 lpm

- Water inlet temperature – 40°C

- Water outlet temperature – 32°C

- Wet bulb temperature – 28°C

- Tower Loading Factor (TLF) – 10 (as per chart)

- TR = Flow rate / Tower loading factor

= 1200 / 10
= 120 TR

-Nearest (next highest) Model available is SCT150

SCT Selection chart

S.No	Temp.Difference (ΔT)	Approach in ° C
S.No	Temp.Difference (ΔT)	2 ° C	3 ° C	4 ° C	5 ° C	6 ° C	7 ° C	8 ° C
1	4 ° C	10	11	12	13	14	15	16
2	6 ° C	9	10	11	12	13	14	15
3	8 ° C	8	9	10	11	12	13	14
4	10 ° C	7	8	9	10	11	12	13
5	12 ° C	6	7	8	9	10	11	12

Example

- Flow rate – 1200 lpm

- Water inlet temperature – 40°C

- Water outlet temperature – 32°C

- Wet bulb temperature – 28°C

- Tower Loading Factor (TLF) – 10 (as per chart)

- TR = Flow rate / Tower loading factor

= 1200 / 10
= 120 TR

-Nearest (next highest) Model available is SCT150

SCT Selection chart

S.No	Temp.Difference (ΔT)	Approach in ° C
S.No	Temp.Difference (ΔT)	2 ° C	3 ° C	4 ° C	5 ° C	6 ° C	7 ° C	8 ° C
1	4 ° C	10	11	12	13	14	15	16
2	6 ° C	9	10	11	12	13	14	15
3	8 ° C	8	9	10	11	12	13	14
4	10 ° C	7	8	9	10	11	12	13
5	12 ° C	6	7	8	9	10	11	12

Example

- Flow rate – 1200 lpm

- Water inlet temperature – 40°C

- Water outlet temperature – 32°C

- Wet bulb temperature – 28°C

- Tower Loading Factor (TLF) – 10 (as per chart)

- TR = Flow rate / Tower loading factor

= 1200 / 10
= 120 TR

-Nearest (next highest) Model available is SCT150

SCT Selection chart

S.No	Temp.Difference (ΔT)	Approach in ° C
S.No	Temp.Difference (ΔT)	2 ° C	3 ° C	4 ° C	5 ° C	6 ° C	7 ° C	8 ° C
1	4 ° C	10	11	12	13	14	15	16
2	6 ° C	9	10	11	12	13	14	15
3	8 ° C	8	9	10	11	12	13	14
4	10 ° C	7	8	9	10	11	12	13
5	12 ° C	6	7	8	9	10	11	12

Example

- Flow rate – 1200 lpm

- Water inlet temperature – 40°C

- Water outlet temperature – 32°C

- Wet bulb temperature – 28°C

- Tower Loading Factor (TLF) – 10 (as per chart)

- TR = Flow rate / Tower loading factor

= 1200 / 10
= 120 TR

-Nearest (next highest) Model available is SCT150

Sizing Conversion Factors

Operating Conditions
	Ideal	Maximum
Working Pressure	4 bar to 10 bar	12 bar
Inlet Temperature	40°C	50°C
Atmospheric Dew Point	-40°C	-60°C
Cycle Time	4 minutes	4 minutes
Electrical	220V / 50 Hz / Single Phase	220V / 50 Hz / Single Phase

InletTemperature : (C1)

Inlet Temp ^oC	30	35	40	45	50	55	60
Conversion factor	1.2	1.15	1.05	1.0	0.85	0.8	0.7

AmbientTemperature : (C2)

Ambient Temp ^oC	25	30	35	40	45	50
Conversion factor	1.2	1.14	1.1	1.0	0.9	0.8

Inlet Pressure : (C3)

Inlet Pressure	bar (g)	4	5	6	7	8	9	10.5	11	12.5	13	14	15	16
Inlet Pressure	psi (g)	58	73	87	100	116	131	150	160	180	189	200	218	232
Correction Factor		0.75	0.85	0.95	1.00	1.06	1.11	1.15	1.18	1.20	1.22	1.23	1.25	1.28

Pressure Dew Point : (C4)

Dew Point (C4)
Dewpoint in C	3	7	10
Correction Factor	.0	1.15	1.3

Sizing Conversion Factors

Dryer Nominal Capacity =	Compressor Actual Capacity
	C1 x C2 x C3 x C4

Products Selection Chart

Bottle

View Chart

Dry Cooling tower

View Chart

Wall Mounting

View Chart

Heatless Desiccant

View Chart

Energy Saving Digital

View Chart

All Aluminium

View Chart

Copper Coil

View Chart

High Pressure

View Chart

Logic Controller

View Chart

Dual Frequency

View Chart

General Purpose

View Chart

Series Heatless

View Chart

Moisture Separator

View Chart

Compressed Air Filter

View Chart

Compressed Air Receiver

View Chart
